Wiggle while you work: using jittering to augment object tracking in low fps videos
Categories:
7 minute read
In the realm of computer vision, dealing with low FPS (frames per second) video presents unique challenges, especially when attempting to maintain consistent object tracking.
Here I try an approach that involves cloning multiple copies of each low FPS video’s frames and applying small, random positional shifts to each clone in order to artificially generate higher FPS video. By adding these minor wiggles, the tracker gains more samples of an identified individual–each with a slight perturbation in the location of the individual relative to the original source frame. This seems (not verified yet) to provide the lost_track_buffer with more frames allowing the model to build better confidence in its identifications. The precise mechanisms behind why this jitter improves tracking are beyond the scope of this brief demo, but well worth investigating.
The key variables we control when setting up the ByteTrack instance are:
| Name | Type | Description | Default |
|---|---|---|---|
| track_activation_threshold | float | Confidence threshold for track activation. Higher values improve stability but may miss detections. | 0.25 |
| lost_track_buffer | int | Frames to buffer when a track is lost. Higher values reduce the chance of track fragmentation. | 30 |
| minimum_matching_threshold | float | Threshold for matching tracks with detections. Higher values reduce false positives but may cause fragmentation. | 0.8 |
| frame_rate | int | The frame rate of the video. | 30 |
| minimum_consecutive_frames | int | Frames needed to consider a track valid. Higher values prevent false tracks but may miss short tracks. | 1 |
These variables can be set with some reasonable guesses, but future work might also run scans across different values of these variables to find the optimal ranges for their use cases. To that end, the reader may find just as much if not more value in fine tuning the variables for ByteTrack than introducing jitter. This demo only shows one example of how jitter improved tracking.
- detections of people are done via YOLO
- YOLO is a widely used family of models for object detection.
- object tracking via the
supervisionimplementation of ByteTrack- ByteTrack is an efficient tracking algorithm designed for multi-object tracking (MOT). It builds on top of the popular SORT (Simple Online and Realtime Tracking) and DeepSORT algorithms.
Method
Getting low FPS demo video
First, generate an image using a GenAI tooling. Here is an example of an image of an apartment courtyard with a few people walking, created using DALLE:
I next create a synthetic video via RunwayML using this image as the starting frame. As of the writing of this post, Alpha 3 turbo generates ten seconds of video at 24 fps:
The video isn’t perfect, with weird artifacts such as two people forming from one. However, it suffices to demonstrate the power of jittering.
We can downscale that to 1fps with this ffmpeg command:
ffmpeg -i input_video.mp4 -vf "fps=1" -c:v libx264 -crf 23 -preset veryslow -an output_1fps.mp4
resulting in this much lower frame rate video:
When I process this video with YOLOv8/ByteTrack, I get poor tracking. Wherever you see the word YOLO in the bounding box attributes rather than Object ID, that means that while YOLO detected a person, ByteTrack couldn’t track it, which happens a lot in the 1fps video:

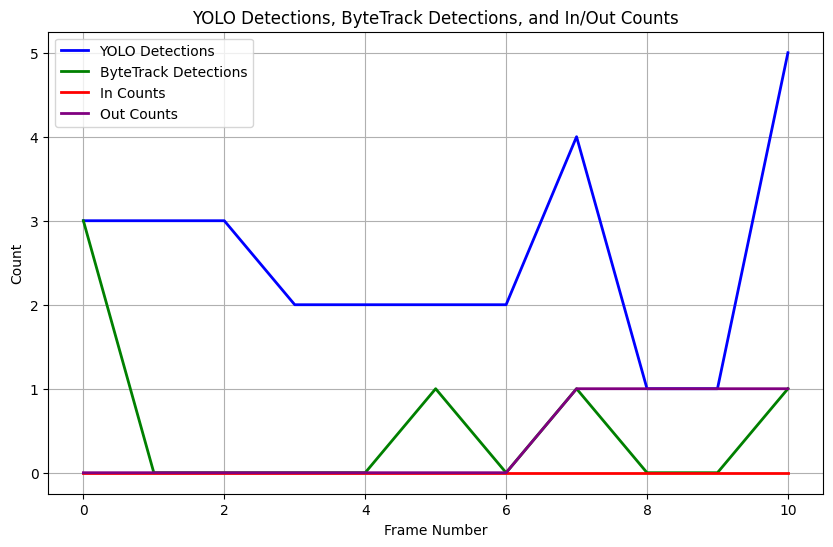

We can see the failure of ByteTrack in this graph which shows Yolo detections and ByteTrack ids, where the latter line is consistently lower than the detections:
ex uno plures
Is there a CPU/GPU cheap way to artificially increase the framerate? One way is that I could provide a jitter of the image where I shift it slightly up, down, left, or right, using a Gaussian distribution.
def wiggle_frame(frame, shift_std=2):
"""Apply a small random shift to the frame."""
rows, cols, _ = frame.shape
x_shift = int(np.random.normal(0, shift_std))
y_shift = int(np.random.normal(0, shift_std))
# Translation matrix for the frame
M = np.float32([[1, 0, x_shift], [0, 1, y_shift]])
# Apply the translation to the frame
wiggled_frame = cv2.warpAffine(frame, M, (cols, rows))
return wiggled_frame
def increase_fps(input_video_filename, target_fps):
cap = cv2.VideoCapture(input_video_filename)
original_fps = cap.get(cv2.CAP_PROP_FPS)
original_frame_count = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
frame_duration = 1 / original_fps
target_frame_count = int(original_frame_count * target_fps / original_fps)
# Prepare the output video
output_filename = f"{os.path.splitext(input_video_filename)[0]}_wiggle_{target_fps}fps.mp4"
fourcc = cv2.VideoWriter_fourcc(*'mp4v')
width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))
height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))
out = cv2.VideoWriter(output_filename, fourcc, target_fps, (width, height))
# Process each frame
for _ in tqdm(range(original_frame_count)):
ret, frame = cap.read()
if not ret:
break
# Write the original frame first
out.write(frame)
# Generate additional frames to meet the target FPS
num_wiggles = target_fps - 1
for _ in range(num_wiggles):
wiggled_frame = wiggle_frame(frame)
out.write(wiggled_frame)
cap.release()
out.release()
print(f"Processed video saved as {output_filename}")
This produces the jittered equivalent of the original 1fps video:
Detecting with the jittered video
Next we run the same detection against the jittered video, finding substantially better tracking than the original 1fps video:

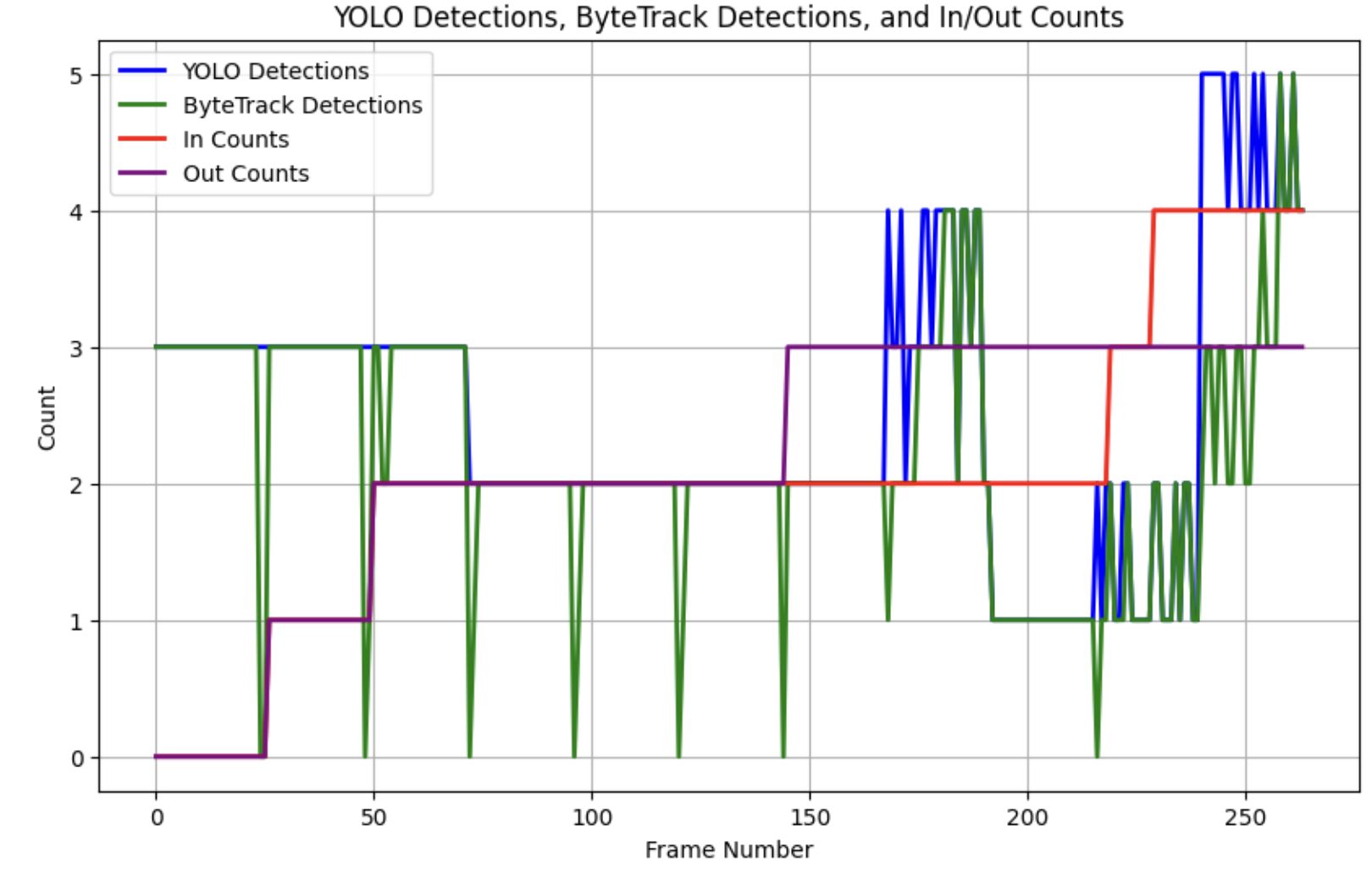

We can see this graphed here, where the YOLO detections and the ByteTrack detections line up far better, albeit not perfectly. The in/out metrics aren’t perfect either, though better than the original 1fps; however, fine tuning these detections was not the focus of the demo. The false detections for the in/out metric seem to coincide with dropouts in the ByteTrack detections, something that could likely be improved greatly by binning over detections rather than letting every single frame dictate a bump in the in/out metrics.
There is an inverse spiky behavior when the ByteTrack detections drop out in a small percentage of the synthetic frames; this could possibly be solved by binning over N frames and taking the majority detection as the bin’s detection.
Next steps
Even though this method is substantially less intensive to run than any attempts to morph between frames, and it will likely be less accurate than those methods, this trick demonstrates in this example a substantial improvement in tracking over the original low frame-rate video. Ways this could be refined include:
- Could this improve detections in some higher fps video as well?
- Explore how many artificial frames we need to create for this trick to work effectively; the less the better to preserve cpu/gpu cycles
- Trying to find the optimal jitter magnitude and frequency, minimizing the number of artificial frames we need to create
- Reducing the jitter to just regions that cover bounding boxes of detection (saving CPU/GPU cycles)
- Doing an bin-ensemble analysis over the artificial extra frame identification results, instead of letting every single frame’s results have a say (which leads to more false positive/negative results)
- Combining ByteTrack with some further augmentations, or making improvements to ByteTrack
- Exploring other models
- More sophisticated solutions such as…?
Code samples
The detection/id function:
def analyze_video(input_video_filename):
# Initialize lists to store data for plotting
yolo_detections_per_frame = []
tracked_detections_per_frame = []
in_counts_per_frame = []
out_counts_per_frame = []
frame_numbers = []
output_base = os.path.splitext(input_video_filename)[0]
output_video_filename = f"{output_base}_processed.mp4"
output_png_filename = f"{output_base}.png"
base_fps = get_video_fps(input_video_filename)
# Reinitialize the tracker for each video
tracker = sv.ByteTrack(
lost_track_buffer=80,
track_activation_threshold=0.02,
minimum_matching_threshold=3,
frame_rate=base_fps # Adjust according to the actual frame rate of your video
)
classes = list(model.names.values())
LINE_STARTS, LINE_END = sv.Point(0, 400), sv.Point(1280, 400)
box_annotator = sv.BoxAnnotator()
label_annotator = sv.LabelAnnotator()
line_counter = sv.LineZone(start=LINE_STARTS, end=LINE_END)
line_annotator = sv.LineZoneAnnotator(thickness=2, text_thickness=2, text_scale=0.5)
video_info = sv.VideoInfo.from_video_path(video_path=input_video_filename)
# Process the video frames
with sv.VideoSink(target_path=output_video_filename, video_info=video_info) as sink:
frame_index = 0
for frame in tqdm(sv.get_video_frames_generator(source_path=input_video_filename), total=video_info.total_frames):
enhanced_frame = enhance_frame(frame)
# Run YOLO on the frame
results = model(enhanced_frame, verbose=False, conf=0.2, iou=0.7)[0]
detections = sv.Detections.from_ultralytics(results)
detections = detections[np.where((detections.class_id == 0) | (detections.class_id == 2) | (detections.class_id == 7))]
# Collect the number of YOLO detections
yolo_detections_per_frame.append(len(detections.xyxy))
# Apply the narrowing to all detections
for i, bbox in enumerate(detections.xyxy):
detections.xyxy[i] = narrow_bounding_box(bbox, reduction_ratio=0.6)
# Track the detections
detections_tracked = tracker.update_with_detections(detections)
# Collect the number of tracked detections
tracked_detections_per_frame.append(len(detections_tracked.xyxy))
# Annotate frame with bounding boxes and labels
annotated_frame = enhanced_frame.copy()
# Annotate YOLO detections (even if not tracked)
annotated_frame = box_annotator.annotate(scene=annotated_frame, detections=detections)
labels = [f"YOLO: {classes[detections.class_id[i]]} {detections.confidence[i]:.2f}"
for i in range(len(detections.class_id))]
annotated_frame = label_annotator.annotate(scene=annotated_frame, detections=detections, labels=labels)
# Annotate tracked detections
annotated_frame = box_annotator.annotate(scene=annotated_frame, detections=detections_tracked)
tracked_labels = [f"#{detections_tracked.tracker_id[i]} {classes[detections_tracked.class_id[i]]} {detections_tracked.confidence[i]:.2f}"
for i in range(len(detections_tracked.class_id))]
annotated_frame = label_annotator.annotate(scene=annotated_frame, detections=detections_tracked, labels=tracked_labels)
# Handle line crossing and collect in/out counts
line_counter.trigger(detections=detections_tracked)
annotated_frame = line_annotator.annotate(frame=annotated_frame, line_counter=line_counter)
# Store in/out counts
in_counts_per_frame.append(line_counter.in_count)
out_counts_per_frame.append(line_counter.out_count)
# Write the annotated frame to the output video
sink.write_frame(frame=annotated_frame)
# Collect frame number for plotting
frame_numbers.append(frame_index)
frame_index += 1
# Plotting the results
plt.figure(figsize=(10, 6))
# Plot YOLO detections with a solid line
plt.plot(frame_numbers, yolo_detections_per_frame, label="YOLO Detections", color="blue", linestyle='-', linewidth=2)
# Plot ByteTrack detections with a solid line
plt.plot(frame_numbers, tracked_detections_per_frame, label="ByteTrack Detections", color="green", linestyle='-', linewidth=2)
# Plot in counts with a solid line
plt.plot(frame_numbers, in_counts_per_frame, label="In Counts", color="red", linestyle='-', linewidth=2)
# Plot out counts with a solid line
plt.plot(frame_numbers, out_counts_per_frame, label="Out Counts", color="purple", linestyle='-', linewidth=2)
plt.xlabel("Frame Number")
plt.ylabel("Count")
plt.title("YOLO Detections, ByteTrack Detections, and In/Out Counts")
plt.legend()
plt.grid(True)
plt.savefig(output_png_filename)
plt.show()
References
https://arxiv.org/abs/2110.06864
https://github.com/ifzhang/ByteTrack
